Monday, October 17, 2011

Water-use efficiency, or else! - The case of West Palm Beach

The City of West Palm Beach made local headlines last week.

Apparently, due to a confluence of circumstances including severe drought and poor water management, the city may soon exhaust its water supply.

Despite preparing for the worst earlier this year by initiating one day per week watering restrictions, the city (population ~100,000 with utilities also servicing additional residents in un-incorporated areas) still finds itself in a serious situation.

Couple this news with other recent information about salt-water intrusion in South Florida and the need for sustainable and competent water resource management in the region seems especially urgent.

Read about West Palm Beach's water woes here.

View how a municipality in peril engages residents through educational video media here.

Wednesday, October 5, 2011

Kevin's Peace Corps Blog

Hi everyone at TREC!

Looks like you all are as busy as ever!

I wanted to give you a quick update on what I am up to. I am leaving next Wednesday for Lesotho, a small land locked country within South Africa as a Peace Corps volunteer teaching secondary science.
I have started a blog using the same site as this one so hopefully you all can check in sometimes! I will try to shoot over blog posts relating to water resources/management where I am when I can

Here is my Blog:
Or search in Blog Spot for: "Journey to the Kingdom in the Sky" should come up!

Take care!


TREC in Brazil!!!

The last week of September Dr. Yuncong Li and I spent a week in Brazil with Dr. Teresa Pissarra. Teresa had previously worked in our group as a visiting scientist. We helped Teresa with a week-long water quality course while we were in Brazil - and learned a lot about Brazilian agriculture!!

We gave several talks - primarily related to our book and water quality training course.

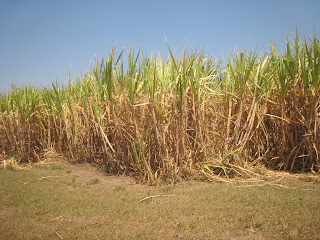

We were able to see some very interesting agriculture and to conduct in field demonstrations for soil and water sample collection.

We also toured a sugar mill that produces sugar and ethanol.

We drove to Ubutuba and enjoyed a beautiful beach.

And, had romantic dinners! What a great place and what a wonderful host!

Tuesday, October 4, 2011

Nicki’s Field Study, Phase IV: all systems go!

Last month the field plot study was officially set in motion! With all the plots fertilized, the four treatment timers programmed, sprinkler uniformity tests conducted for all reps, and a lysimeter sampling plan established, three months of work came to fruition and the larger labor of research is now underway. What follows is a summary of the final steps leading to study initiation.

Go forth and fertilize!

In early September, the field plot was fertilized for the first time using a 26-2-11 (26% N [6.5% slow-release N], 2% P, 11% K) combination.

In accordance with IFAS recommendations (1 lb N per 1000 sq. ft), 17.8 lbs of the above fertilizer was applied using a Scotts Standard broadcast spreader.

The spreader was pushed through the middle of each plot (in both parallel and perpendicular directions) at a relatively quick, steady pace.

Analysis of the leachate captured by lysimeters buried in the plots will help indicate which irrigation control device is more likely to contribute to the loss of fertilizer into the groundwater.

Uniformity: day night/day night

In order to ensure that sprinklers in each treatment rep are covering the rep’s area in a uniform fashion, uniformity tests were conducted for all 16 plots.

Each plot is irrigated with 4 MP 1000 multi-stream spray nozzles (pressure-regulated to 30 psi and restricted to 90° arc) – one at each corner spraying inward. To account for the entire plot, 25 catchments (947 mL plastic containers with a round opening, diameter = 5.25 in) were set up in a uniform grid pattern, 1 ft inset from the outer boundary and equally spaced in each plot.

Tests were conducted for 2 hrs and four plots at a time to avoid excessive pressure loss. Wind speed was monitored every 15 minutes with a handheld anemometer. However, to eliminate wind disturbance and evaporation, tests were run in the evening and early morning.

Manuel & Letty in all-nighter mode

rotator at sundown

Science by lantern-light!

In the best of all possible worlds, the above testing plan translates to 4 runs of 4 and the process is finished! But this is research - which is, if nothing else, fraught with surprises!

Wind speed is monitored in 15 min intervals

After performing 22 uniformity tests (16 plots + 6 re-do’s), all plots passed with acceptable distribution uniformity ratings as set by the Irrigation Association.

Determining catch can volumes

Getting with the program

The four irrigation treatments in the study are:

1. Automated schedule (no control device)

4. Evapotranspiration (ET)-based

The basis of all treatment programming is that MP 1000 heads apply water at a rate of 0.5 in/hr. In accordance with UF recommendations of never irrigating in excess of 0.5 in during an event, the automated schedule treatment is programmed to run for 1 hr, twice a week - thus also abiding by Miami-Dade County’s 2 day per week watering restriction.

The soil water sensor treatment is also programmed for one hour twice a week, but its four reps will fire only if the sensor buried in each plot detects moisture below a set threshold (~70% of the volumetric water content at saturation). The sensor threshold was set automatically by saturating the area (at sundown) where the sensor is buried and initiating the automatic threshold feature. 24 hrs later the sensor set a threshold.

The rain sensor treatment is programmed similarly, but the timer will cease to function if and when the sensor catches 0.5 in of water during a rain event.

Unlike the other treatments, the weather-based controller treatment is not programmed with a set run time. Instead, factors such as sprinkler type, shade factor, and plant type were input. Restricted to two watering days per week and a 1 hr watering window therein, the timer will apply the volume that the above factors in conjunction with the temperature and rainfall information from its on-site weather station deem necessary.

Catch and release

A lysimeter sampling plan has been established that will span the entire sampling period (September 2011 – January 2012). Every Monday and Thursday, leachate samples are collected from the lysimeters (12) buried in each treatment’s plots.

Beginning with a clean peristaltic pump (acid-washed and rinsed with DI-water) and clean 250 mL sample bottles, the sampling protocol is as follows:

1. Collect both an equipment and field blank

2. Pump an initial small sample amount from the lysimeter to purge hose of leftover DI-water
3. Collect leachate sample, label bottle appropriately and place it in a field cooler

4. If captured leachate exceeds 250 mL, measure and record remaining volume in graduated cylinder
5. Rinse pump hose between each sampling with ~400 mL DI-water and repeat steps 2-5

Samples are then filtered and frozen for future analysis of nitrate (NO3), total nitrogen, and ammonium (NH4). Phosphorous testing will only be done for the initial and final round of collected samples. Pre-fertilization and final soil and grass clipping sample analysis will also be performed.


In addition to the Water Resource Engineering team, visiting student interns Manuel and Letty contributed greatly to the completion of the tasks described above.

Nicole Dobbs

See previous field plot entries:
