Tuesday, August 31, 2010

EPAF

I will be at the EPAF meeting this week - leaving Wed afternoon and return late on Thursday. You will be able to reach me by email or cell phone.

Also - as a reminder - Isaya and Tanh will be in Homestead this weekend. They will be installing tensiometers and collecting soil samples for the C111 project... weather permitting!! Tanh is the newest PhD student to our group.

Monday, August 30, 2010

New WUEP research sites added!

Two homeowner properties participating in Miami-Dade Extension’s Water-Use Efficiency Program (WUEP) were added as pair-wise research sites last week.



Property 1
Installation day began with a two irrigation-zone city water property requiring a complete retrofit.

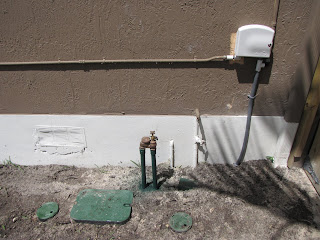

With the D.I.Y.-oriented homeowner at our side the entire time, we installed an anti-siphon valve to protect the potable lines, two electric valves, a water meter on each zone and the soil water sensor system.







Property 2
The day’s second property also featured a mechanical city water irrigation system. Fueled by the homeowner’s offer of all the ice water we could drink, we again installed the anti-siphon valve, electric valves, a water meter on each of the two zones, and the soil water sensor system.






The addition of these properties to the WUEP pair-wise study brings the research site total to 16. Organized by geographical region, I visit these properties weekly to collect water-use data – specifically, comparing a zone programmed to irrigate on schedule against a zone that is prevented from irrigating should the soil water sensor detect adequate moisture. This data helps demonstrate the effectiveness of irrigation control technology in urban landscape irrigation.

Wednesday, August 25, 2010

Soil water content probes installed!

Another phase of the C-111 project was completed this week with the installation of soil water content probes in agricultural areas along the C-111 canal.




Part I: installing access tubes

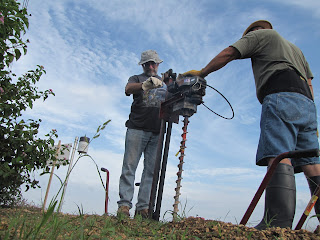

The first part of the installation focused on laying down the infastructure for probe insertion. To this end, the Water Resource Engineering team, with invaluable assistance from special guests Bruce and Manny, drilled holes adjacent to the monitoring wells at six sites.

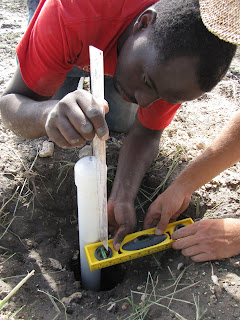

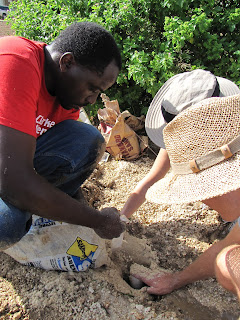

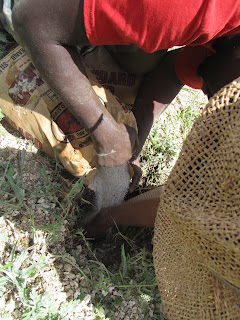

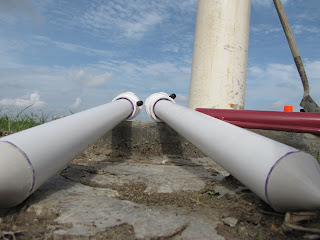

Once a hole is ready, the probe access tube is inserted and cemented in place – ideally with a thin coat of cement lining the tube and the hole’s interior.






One research site was so water-logged, the team decided to delay equipment installation until late fall, south Florida's dry season.




Probe head-unit stands were also installed and painted bright orange to protect equipment from errant heavy machinery.






Part II: inserting and launching probes

Despite unwavering companionship from feisty mosquitoes, the Water Resource Engineering team set about inserting and launching the soil water content probes.

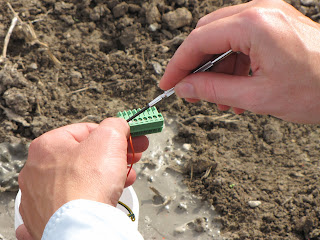

This task involved mounting the probe head-unit (power source) to the stand and then running its wire into the access tube and connecting it to the probe.







Once powered, the probe is connected to the laptop. The current date/time is updated, and the probe data collecting launch time is set.

In all, ten probes were installed – two for each of five sites characterized by the dominant soil types in the C-111 area: Biscayne (gravelly marl), Krome (very gravelly loam), and Chekika (very gravelly loam). Every 15 minutes, probes will take soil water content readings at depths of 10, 20, 30 & 40cm.




Next stop: tensiometers!

Tuesday, August 24, 2010

Working hard

I just want to thank everyone for all the hard work. I know we had a very busy summer and it looks like a busy fall... but I think we will all be proud of what we have accomplished. Thanks to Mike and Tina for their continued support. I would also like to thank Isaya for his efforts. The results from the summer REU and the C111 so far are great! I think we all have something to celebrate.

Thursday, August 19, 2010

Before installation? Configuration!

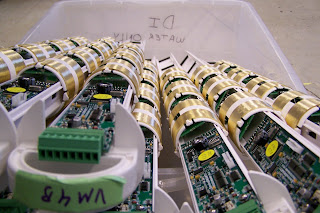

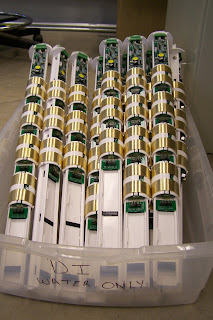

In preparation for the next step in the C111 project, the EnviroScan soil water content probes were calibrated this week. Next week, two of these probes will be installed at each of the six C111 project study sites (adjacent to the groundwater wells).



The configuration process


Configuring the soil water content probes consists of establishing, for each indiviual sensor:
-high and low points
-depth in the ground
-poistion on the probe
-sampling interval
The final step is naming the specific probe based on study necessity.

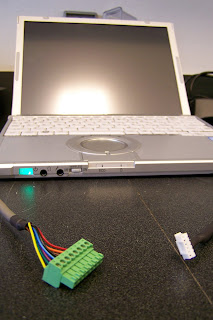

Below are pictured all the tools for successful configuration of these particular probes (Solo).




1. a laptop with configuration software installed
2. a configuration USB cable (allows laptop and probe to communicate)
3. a probe head unit (to power the probe)
4. a probe access tube (for air readings)
5. a water-filled container bisected by an access tube (for water readings)

Let's begin

For configuration to begin, the probe is connected to the head unit (for power) and the USB cable (to communicate with the laptop).

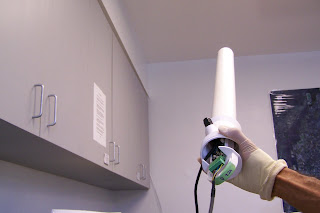

Once communication is achieved, the probe is then inserted into the access tube. The tube is then held in the air and each sensor is read individually to establish the high point reading.




For the low point reading, the probe is inserted into the access tube bisecting the water-filled container. When read, the sensor in question should be approximately in the center of the underwater access tube.





Following the high/low points, sensor depth is assigned and the sampling interval is established. The final step is naming the probe, synchronizing the date and time, and writing all this information to the probe.


Next stop, installation!

Monday, August 16, 2010

C-111 Project wells are now operational!*

Initiated early this month and finished last week, the monitoring wells component of the C-111 project is now online!


Drilling

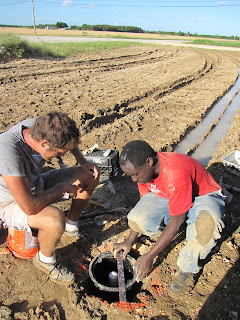

Earlier this month, the entire Water Resource Engineering team (with special guests Kiah and Robert) installed 4 wells in agricultural areas along the C-111 canal. Well construction in a shallow water table, as we learned in the field, is a rather messy and labor intensive process.



The first step involved making a 4 inch borehole into which a 2 inch well casing was inserted.






The annular space around the well screen was filled with coarse sand up to a depth of 5 feet. The annular space above the coarse sand was filled with fine sand and cement, each to 7 feet.





To prevent vandalism, the top portions of the wells were protected using water proof 12 inch cast iron manholes.




Surveying



In order to obtain precise data on water table elevation, it is necessary to accurately determine the elevation of the wells above sea level.

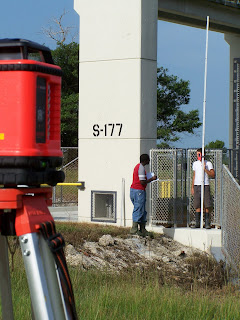

The elevations of the wells were obtained using differential surveying based on a benchmark located at S-177 along C-111. The surveying was done using a laser level.

Leveloggers


The final step in the process involved the programming and deploying of Solinst leveloggers. The leveloggers were installed at an elevation of -2 meters below sea level (NGVD 29) and were programmed to log water table levels every 15 minutes. A barologger was installed in one of the wells in order to provide for atmospheric corrections. The leveloggers are currently in a testing period.


Soil Water Monitoring


In the coming weeks, we will install EnviroScan probes near the well locations to monitor soil water in the different soil types (i.e., Krome, Chekika and Marl) of the agricultural areas along the C-111 canal. Stay tuned!



* Isaya Kisekka contributed to this blog post.
